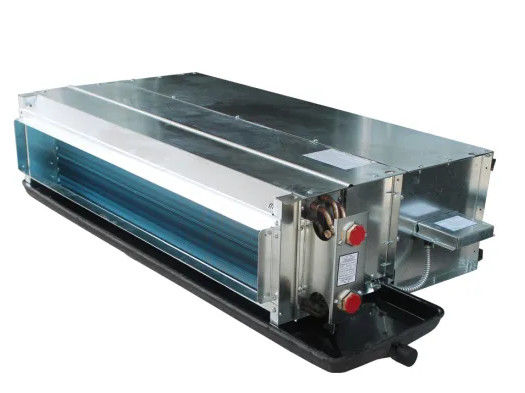

Water System High Efficiency Ultra Thin Type Horizontal Fan Coil Unit
Air flow (m³/h) |
High | 1360 | 1700 | 2040 | 2380 | 2720 | 3060 | 3400 | |
Medium high | 1360 | 1700 | 2040 | 2380 | 2720 | 3060 | 3400 | ||
Medium | 950 | 1190 | 1430 | 1670 | 1900 | 2140 | 2380 | ||
ESP (Pa) |
High | 75 | 75 | 85 | 85 | 100 | 100 | 100 | |
Medium high | 50 | 50 | 50 | 50 | 60 | 60 | 60 | ||
Medium | 37 | 37 | 42 | 42 | 49 | 49 | 49 | ||
Cooling capacity (kW) |
3ROWS | TH | 6.89 | 8.62 | 10.6 | 12.31 | 13.5 | 15.51 | 17.19 |
SH | 5.51 | 6.91 | 8.24 | 9.58 | 10.55 | 12.15 | 14.14 | ||
4ROWS | TH | 8.35 | 10.44 | 12.92 | 15 | 16.7 | 19.12 | 21.21 | |
SH | 6.18 | 7.76 | 9.31 | 10.83 | 12.14 | 13.98 | 16.28 | ||
Heating capacity (kW) |
3ROWS | 12.54 | 15.45 | 19.07 | 22.02 | 24.58 | 27.98 | 30.8 | |
4ROWS | 14.19 | 17.74 | 21.97 | 25.5 | 28.72 | 32.51 | 36.47 | ||
Water flow (L/S) |
3ROWS | 0.333 | 0.416 | 0.512 | 0.594 | 0.652 | 0.749 | 0.83 | |
4ROWS | 0.403 | 0.504 | 0.624 | 0.724 | 0.806 | 0.923 | 1.024 | ||
Water pressure drop (kPa) |
3ROWS | 23.5 | 36 | 35 | 42 | 31 | 39 | 43 | |
4ROWS | 24 | 37 | 40 | 50 | 30 | 38 | 42 | ||
Noise level dB(A) | / | 51 | 53 | 57 | 58 | 60 | 61 | 61 |
Product Detail
FRAME and STRUCTURE
Panels and frame are made of galvanized steel, properly punched for fixing both accessories and the unit itself.
HIGH EFFICIENCY COIL
The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.
LOW NOISE
Thanks to the rigidly bolted panel, dynamic and static balancing test of fans, maximum to reduce the vibration and noise. Coupled with high quality insulation material inside the unit, superb low noise performance is achieved.
MULTIPLE ESP AVAIABLE
Stand units come with ESP 70Pa to 150Pa, able to suit different applications.
FAN
The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.
DRAIN PAN
Drain pan with integral thermal insulation and professional welding skill enable all condensation water to be collected and prevent leakage.
FILTER
Filter is made of aluminum net and aluminum frame, easy to clean and replace.
