|Name:||Fresh Air Ventilator||Type:||HVAC Systems|
|Color:||White,Customer Requirements||Package:||Carton And Ply-wooden Case|
|Certification:||CE,ISO9001,SGS,CCC||Air Tube Material:||Galvanized Sheet|
|Function:||Air Conditioner Terminal Unit|
4rows fresh air ventilator,
6rows fresh air ventilator,
8rows fresh air ventilator

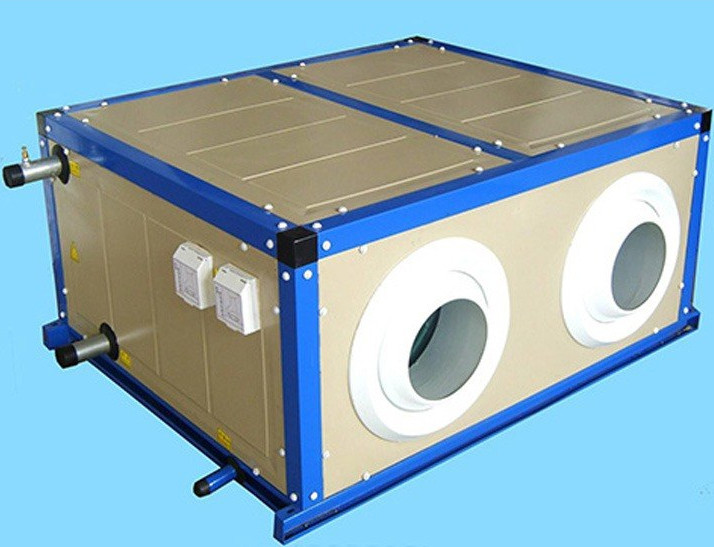

Ceiling Air Handling Unit with High Performance Ahu Machine Air Handlers
|Fresh Air Ventilator|
|For Experiment, for Air Conditioner, Ventilation|
Aluminum frame structure,mechanical strength,light weight,corrosion resistance,beautiful appearance,accurate size.Flexible assembly structure,easy on-site assembly and disassembly,maintenance,service life is longer than the steel frame.
External double polyurethane color steel panel,run shell produces no cold bridges.
Double inlet centrifugal fans,by the strict dynamic and static balance test,smooth running,small vibration.
Sealed rolling bearing,can automatically aligning and automatic self-locking,thrust,and other functions.Pre-filled with oil,maintenance free.
plate filter can be repeatedly cleaned.
Handling large amount of wind,high air quality,energy saving,less space,multi-function,low noise,low power consumption,attractive appearance, easy installation and maintenance features.
WIDE AIR FLOW RANGE
Standardly, ceiling concealed type AHU air flow ranges from 1500 to 15000m3/h; horizontal/vertical type AHU air flow ranges from 2000 to 40000m3/h, able to fulfill various application requirements. Meanwhile, bigger air flow is available by tailor-made as customer special requirement.
PANEL STRUCTURE DESIGN
Panel is made of powder coated double steel (outer and inner both) with high pressure polyurethane foam fitting in between, thus offering a rigid and robust panel.
Frame is made of aluminum alloy which is fastened to the panel, as a result, the unit is strong and lightweight.
LOW AIR LEAKAGE
Thanks to the high pressure PU foam fitting, and special design insulation method to guarantee no low air leakage, to best minimize loss of energy.
Thanks to the rigidly bolted panel, dynamically and statically balanced fan assembly with spring isolator and closely integrated section, maximum to reduce the vibration and noise.
Packaging & Delivery
Packaging Details: Wooden pallets, polyethylene foams.
Delivery Detail: 30 days
