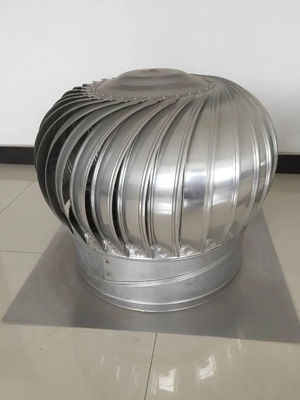

45000m3/H 36 Inch Industrial Roof Mounted Turbine Air Ventilator

Basic Information
Place of Origin: SHANDONG,CHINA
Brand Name: aoxin
Certification: CE,ISO9001,SGS,CCC
Model Number: HTF
Minimum Order Quantity: 1 piece
Price: usd50-150usd/piece negotiable
Packaging Details: carton and plywooden case
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 5000pieces/month
Material: Stainless Steel Size: Customized
Name: Axial Flow Fan Air Volume: 600m3/h-45000m3/h
Package: Carton And Ply Wooden Case Nature: Electric Air Blower
Mounting: Roof Fan Usage: Ventilation
High Light:

roof mounted turbine air ventilator


36 inch turbine air ventilator


45000m3/h turbine air ventilator

36 inch Bigger Industrial Roof Turbine Stainless Steel Air Ventilator


Product Detail


Name The Grade and Thickness of each part
The Ball Diameter 880MM
The Throat Diamet er 680MM
The top plate 0.5MM 202stainless steel
The blade 0.5MM 202stainless steel
Blade ring 0.5MM 202stainless steel
Bottom ring 0.5MM 202stainless steel
The Gasket 0.5MM 202stainless steel
Shaft Ø13MM 202stainless steel
Big support 1.2-1.4MM 202 stainless steel
small support 1.2-1.4MM 202stainless steel
Cast-aluminium(set) Cast-aluminium(set)
Roof panel bolt 202stainless steel
Nos of Bearing 2 bearings
Bearing Type 6003 and 6005 Bearing (Japanese NSK Bearing or USA UBC Bearing)
Nos of Blades 36pcs Double Curved
The width of each blade 85mm 202stainless steel
The bearing files circle card 202stainless steel
Solid Rivet 3005 aluminium

The Height of the turbo
The netweight of turbo 11.7kgs



1. It is no electricity or energy costing and noiseless, exhausting air naturally and effectively. It can work for a long time so as to make fresh air circulating.
2. Good surface self-lubricating performance, superior anti-corrosion, weather resistance, strong wear resistance, long service life, light weight and high sensitivity.
3. Minimum packing measurement. Easy to install.
4.15 years warranty.


We are a professional turbine air ventilators manufacturer, the type including 150 200 250 300 500 600 680 880.

Turbine Air Ventilators. Turbine Ventilator. Roof Turbine Ventilator. Rooftop Ventilator, Wind-Driven Turbine Ventilator. Attic Roof Turbine Air Ventilators. Wind Fans. Turbo Ventilator. Roof Turbo Air Ventilators. Rooftop Turbo Ventilator.

Model: 6" 8" 10" 12" 20" 24" 27" 35"
Benefits: Light weight, high revolving speed, strong corrosion resistance, high air exhausting efficiency, sturdy and durable, clean and smooth, uniform color and easy maintenance.


Our services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.


1. Pre-service


24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.


2. Middle service


--Give you best offer

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.


3. After sale service


--3 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Maintenance plan





Dezhou Aoxin Air Conditioning Equipment Co., Ltd. (formerly Shandong Jianhua Air Conditioning Equipment Co., Ltd.), founded in 1997, is located in Tengzhuang Industrial Development Zone, Dezhou City, Shandong Province, both transportation and communication are convenient. It is a specialized enterprise in the manufacturing of central air conditioning equipment, with strong technical force and production product quality is reliable, service is warm and thoughtful, management concept is novel, mechanism is flexible, adaptability is strong and stands in the industry.

In recent years, we have carried out extensive technical cooperation with design institutes and scientific research institutions, passed IS09001 international quality system certification, joined China FRP Industry Association, and constantly adopted advanced technology and techniques at home and abroad, constantly update products, scale production and quality.

At present, our factory can provide design, manufacturing, installation, commissioning, maintenance and other one-stop services, and has formed a professional production, operation and scientific research enterprise of central air conditioning with complete product categories and strong comprehensive supporting capacity.

The company's products have been widely used in China, and have been exported to South Korea, Mongolia and Yugoslavia, and have been well received by users at home and abroad.

In the increasingly fierce international and domestic competition, Aoxin Air Conditioning is determined to adopt the way of absorbing the world's advanced technology and developing its own high-tech products, and constantly develop high-grade, high-tech content and high added value products. With advanced equipment, perfect technology and scientific management, Aoxin’s central air conditioning series products are based on the domestic market and towards the international market.


45000m3/H 36 Inch Industrial Roof Mounted Turbine Air Ventilator 0
